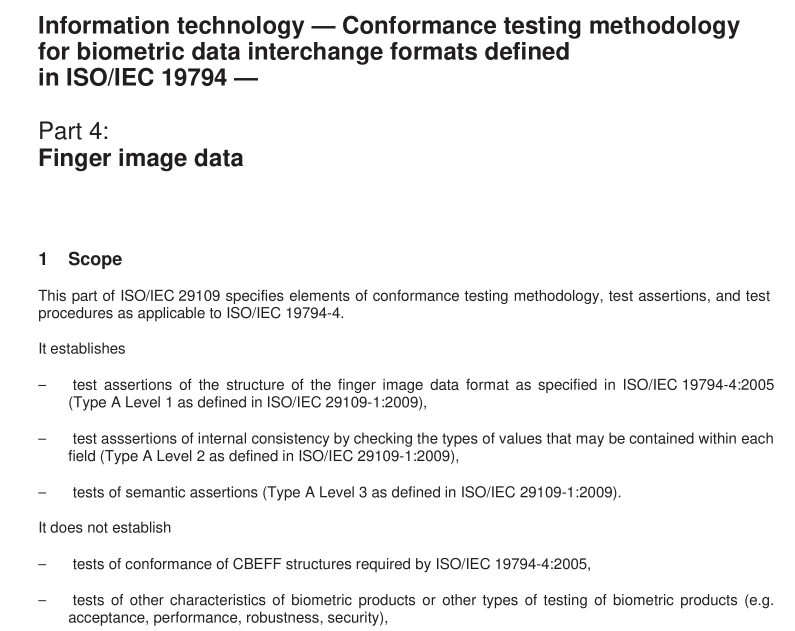

ISO IEC 29109-4:2010 – Information technology — Conformance testing methodology for biometric data interchange formats defined in ISO/IEC 19794 — Part 4: Finger image data

ISO IEC 29109-4:2010 – Information technology — Conformance testing methodology for biometric data interchange formats defined in ISO/IEC 19794 — Part 4: Finger image data
1 Scope
This part of ISO/IEC 291 09 specifies elements of conformance testing methodology, test assertions, and test procedures as applicable to ISO/IEC 1 9794-4.
It establishes
⎯ test assertions of the structure of the finger image data format as specified in ISO/IEC 1 9794-4:2005 (Type A Level 1 as defined in ISO/IEC 291 09-1 :2009),
⎯ test asssertions of internal consistency by checking the types of values that may be contained within each field (Type A Level 2 as defined in ISO/IEC 291 09-1 :2009),
⎯ tests of semantic assertions (Type A Level 3 as defined in ISO/IEC 291 09-1 :2009).
It does not establish
⎯ tests of conformance of CBEFF structures required by ISO/IEC 1 9794-4:2005,
⎯ tests of other characteristics of biometric products or other types of testing of biometric products (e.g.acceptance, performance, robustness, security),
⎯ tests of conformance of systems that do not produce ISO/IEC 1 9794-4:2005 records.
2 Conformance
Biometric data interchange format conformance tests conform to this part of ISO/IEC 291 09 if they satisfy all of the normative requirements related to Clause 6. Specifically, they shall use the test methodology specified in Clauses 6, 7 and 8 of ISO/IEC 291 09-1 :2009, and all Level 1 and Level 2 tests shall use the assertions defined in Table 2 of this part of ISO/IEC 291 09.
Implementations of ISO/IEC1 9794-4:2005 tested according to the methodology specified shall be able to claim conformance only to those biometric data record (BDB) requirements specified in ISO/IEC 1 9794-4:2005 that are tested by the test methods established by this methodology.
Implementations of ISO/IEC 1 9794-4:2005 do not necessarily need to conform to all possible aspects of ISO/IEC 1 9794-4:2005, but only to those ISO/IEC 1 9794-4:2005 requirements that are claimed to be supported by the implementation in an implementation conformance statement (ICS), filled out in accordance with Clause 8 of ISO/IEC 291 09-1 :2009 and Table 1 of this part of ISO/IEC 291 09.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 1 9794-4:2005, Information technology — Biometric data interchange formats — Part 4: Finger image data
ISO/IEC 291 09-1 :2009, Information technology — Conformance testing methodology for biometric data interchange formats defined in ISO/IEC 19794 — Part 1: Generalized conformance testing methodology
4 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 291 09-1 apply.
5 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in ISO/IEC 291 09-1 apply.
6 Conformance testing methodology
The testing methodology specified in Clauses 6, 7 and 8 of ISO/IEC 291 09-1 :2009 shall apply. The content of the tables below is based on the conformance testing methodology outlined in ISO/IEC 291 09-1 :2009 and shall only be used in the context of that testing methodology.
6.1 Table of requirements in the base standard
The normative requirements of ISO/IEC 1 9794-4:2005 are listed in Table 1 . The supplier of the IUT can explain which optional components of the standard are supported and the testing laboratory can note the results of the test.
