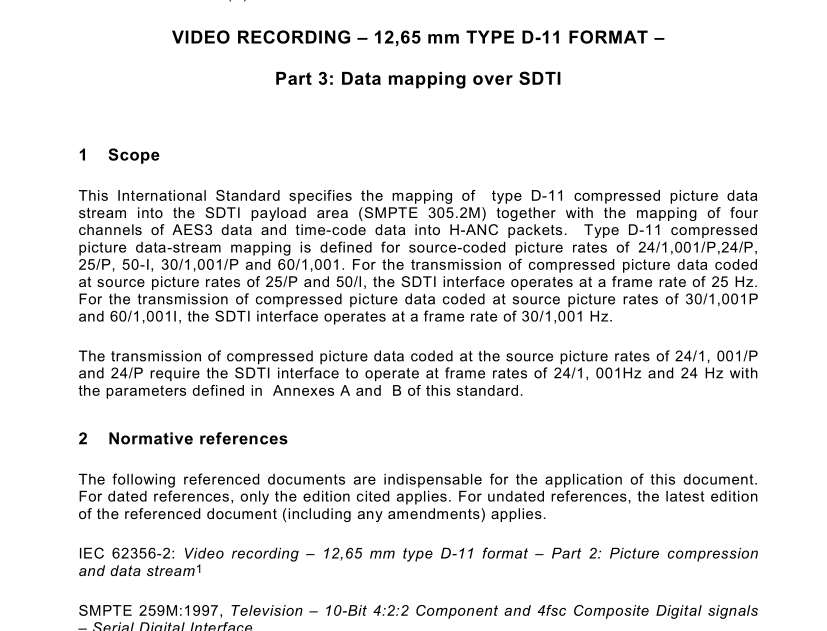

IEC 62356-3 pdf download Video recording – 12,65 mm type D-11 format – Part 3: Data mapping over SDTI
1 Scope
This International Standard specifies the mapping of type D-1 1 compressed picture data stream into the SDTI payload area (SMPTE 305.2M) together with the mapping of four channels of AES3 data and time-code data into H-ANC packets. Type D-1 1 compressed picture data-stream mapping is defined for source-coded picture rates of 24/1 ,001 /P,24/P, 25/P, 50-I, 30/1 ,001 /P and 60/1 ,001 . For the transmission of compressed picture data coded at source picture rates of 25/P and 50/I, the SDTI interface operates at a frame rate of 25 Hz. For the transmission of compressed picture data coded at source picture rates of 30/1 ,001 P and 60/1 ,001 I, the SDTI interface operates at a frame rate of 30/1 ,001 Hz.
The transmission of compressed picture data coded at the source picture rates of 24/1 , 001 /P and 24/P require the SDTI interface to operate at frame rates of 24/1 , 001 Hz and 24 Hz with the parameters defined in Annexes A and B of this standard.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
IEC 62356-2: Video recording – 12,65 mm type D-11 format – Part 2: Picture compression and data stream 1
SMPTE 259M:1 997, Television – 10-Bit 4:2:2 Component and 4fsc Composite Digital signals – Serial Digital Interface
SMPTE 272M:1 994, Television – Formatting AES/EBU Audio and Auxiliary Data into Digital Video Ancillary Data Space
SMPTE 291 M:1 998, Television – Ancillary Data Packet and Space Formatting
SMPTE 305.2M:2000, Television – Serial Data Transport Interface (SDTI)
SMPTE RP1 65:1 994, Error Detection Check words and Status Flags for Use in Bit-Serial Digital Interfaces for Television
SMPTE RP1 88:1 999, Transmission of Time Code and Control Code in the Ancillary Data
Space of a Digital Television Data Stream
AES3:1 992, Serial transmission format for two-channel linearly represented digital audio data
3 General specifications
This standard specifies the mapping of type D-1 1 data stream packets over SMPTE 305.2M (SDTI). Type D-1 1 data stream comprises packets of basic blocks containing compressed picture data and auxiliary picture data as specified in IEC 62356-2.
Four channels of 24-bit AES3 data are optionally mapped into the H-ANC space of the interface according to SMPTE 272M. In addition, VITC may also be mapped into the H-ANC space.
Type D-1 1 data-stream packets are grouped into six equal data segments of which the first three data segments are mapped onto the first field of the SDTI and the last three data segments are mapped onto the second field of the SDTI, as shown in Figure 1 and Table 1 .
