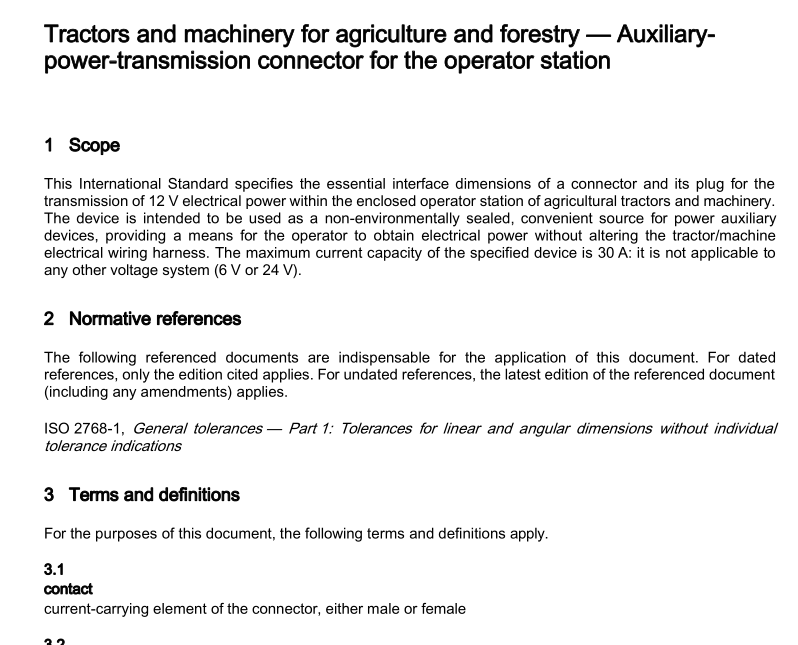

BS ISO 17612 pdf download Tractors and machinery for agriculture and forestry — Auxiliary-power- transmission connector for the operator station
1 Scope
This International Standard specifies the essential interface dimensions of a connector and its plug for the transmission of 12 V electrical power within the enclosed operator station of agricultural tractors and machinery. The device is intended to be used as a non-environmentally sealed, convenient source for power auxiliary devices, providing a means for the operator to obtain electrical power without altering the tractor/machine electrical wiring harness. The maximum current capacity of the specified device is 30 A: it is not applicable to any other voltage system (6 V or 24 V).
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 2768-1, General tolerances — Part 1: Tolerances for linear and angular dimensions without individual tolerance indications
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
contact
current-carrying element of the connector, either male or female
3.2
pin
male contact
3.3
contact socket
female contact
3.4
power strip socket
female half of the connector, integral to the power strip
3.5
power strip plug
male half of the connector, attached to the device to be powered
3.6
connector
complete mated assembly containing socket, plug, pins and contact sockets
3.7
power strip
connector containing one or more distribution positions
3.8
switched current
electrical current path containing a switching component between battery and power strip
3.9
un-switched current
electrical current path having an uninterrupted current path between battery and power strip
3.10
auxiliary device
device attached to the power strip plug
EXAMPLE Monitor, controller, communication device, computer.
4 Requirements
4.1 Dimensional requirements
4.1.1 Power strip socket
The connector shall consist of a base containing one or more sockets.
Each socket shall be covered with a lid, which shall be spring-loaded to close or have a detent to hold it in the closed position. The lid shall have symbols defining the contact positions and their respective use.
A typical example is shown in Figure 1, for reference purposes only.
The socket and pin spacing dimensions shall be in accordance with Figure 2.
Female contacts shall be of at least a tin-plated material designed to mate with the male contacts specified in Figure 3.
4.1.2 Power strip plug
Critical outside dimensions of the power strip plug shall be in accordance with Figure 4 to allow typical mating with the power strip socket.
