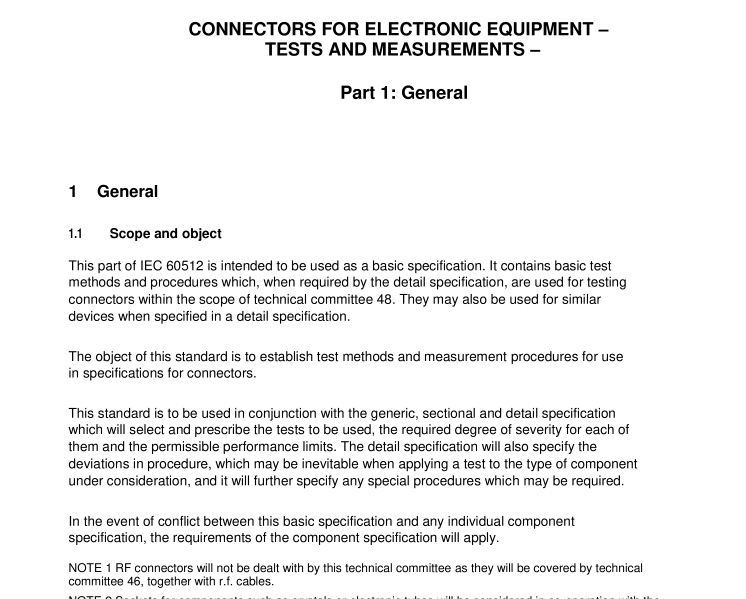

IEC 60512-1 pdf download Connectors for electronic equipment – Tests and measurements – Part 1: General
1.1 Scope and object
This part of lEC 60512 is intended to be used as a basic specification. It contains basic testmethods and procedures which, when required by the detail specification, are used for testingconnectors within the scope of technical committee 48.They may also be used for similardevices when specified in a detail specification.
The object of this standard is to establish test methods and measurement procedures for usein specifications for connectors.
This standard is to be used in conjunction with the generic, sectional and detail specificationwhich will select and prescribe the tests to be used, the required degree of severity for each ofthem and the permissible performance limits. The detail specification will also specify the
deviations in procedure, which may be inevitable when applying a test to the type of componentunder consideration, and it will further specify any special procedures which may be required.
In the event of conflict between this basic specification and any individual component
specification, the requirements of the component specification will apply.
NOTE 1 RF connectors will not be dealt with by this technical committee as they will be covered by technicalcommittee 46, together with r.f.cables.
NOTE 2 Sockets for components such as crystals or electronic tubes will be considered in co-operation with therelevant technical committee.
NOTE 3 Safety requirements for switches will not be developed by this technical committee as they are covered bysubcommittee 23J.
1.2Normative references
The following normative documents contain provisions which, through reference in this text,constitute provisions of this part of lEC 60512.For dated references, subsequent amendmentsto , or revisions of, any of these publications do not apply. However, parties to agreementsbased on this part of iEC 60512 are encouraged to investigate the possibility of applying themost recent editions of the normative documents indicated below.For undated references, thelatest edition of the normative document referred to applies. Members of lEC and lSO maintainregisters of currently valid lnternational Standards.
lEC60068-1:1988,Environmental testing -Part 1 : General and guidance
For the purpose of this part of IEC 60512, the following definitions apply.
group of electromechanical components which predominantly display a particular physical characteristic and/or fulfil a specific function
Example – Family: connectors
group of electromechanical components derived by further subdivision of a family and having similar application features
Example – Sub-family: rectangular connectors
type and style
the definitions for “type” and “style”, referring to a particular component, are given in the detail specification
Examples – Type: rectangular multipole connectors with blade contacts.
Style: rectangular multipole connectors with blade contacts, housing and contact
