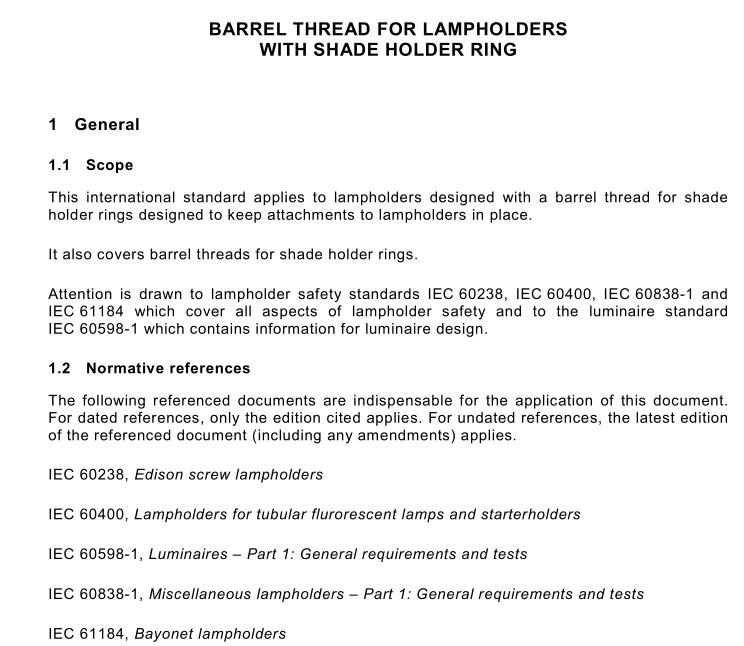

IEC 60399 pdf download Barrel thread for lampholders with shade holder ring
1.1 scope
This international standard applies to lampholders designed with a barrel thread for shadeholder rings designed to keep attachments to lampholders in place.
lt also covers barrel threads for shade holder rings.
Attention is drawn to lampholder safety standards lEC 60238,IEC 60400, IEC 60838-1 andIEC 61184 which cover all aspects of lampholder safety and to the luminaire standardIEC 60598-1 which contains information for luminaire design.
1.2Normative references
The following referenced documents are indispensable for the application of this document.For dated references, only the edition cited applies.For undated references, the latest editionof the referenced document (including any amendments) applies.
IEC 60238,Edison screw lampholders
IEC 60400, Lampholders for tubular flurorescent lamps and starterholdersIEC 60598-1,Luminaires – Part 1: General requirements and tests
IEC 60838-1,Miscellaneous lampholders – Part 1: General requirements and testsIEC 61184,Bayonet lampholders
2 Terms and definitions
For the purposes of this document,the following terms and definitions apply.
barrel thread
external thread on the outer shell of a lampholder intended to support a shade ring
shade ring
cylindrical component having an internal thread to engage a corresponding support on theouter shell of a lampholder and intended to carry or retain a shade.
3Requirements to barrel threads
3.1General requirements
For B15 and B22 lampholders, barrel threads other than those shown in this standard may beused, providing they comply with Figure 8 of lEC 61184.
Pour les autres douilles, les filetages à filet rond autres que ceux illustrés dans cette norme peuvent être utilisés lorsque la douille peut seulement être installée par le fabricant du luminaire ou de l’équipement. Dans tous les autres cas, les filetages à filets ronds spécifiés dans cette norme sont obligatoires.
3.2 Exigences dimensionnelles et calibres
