IEC 60384-18-1 pdf download Fixed capacitors for use in electronic equipment – Part 18-1: Blank detail specification – Fixed aluminium electrolytic surface mount capacitors with solid (MnO 2 ) electrolyte – Assessment level EZ

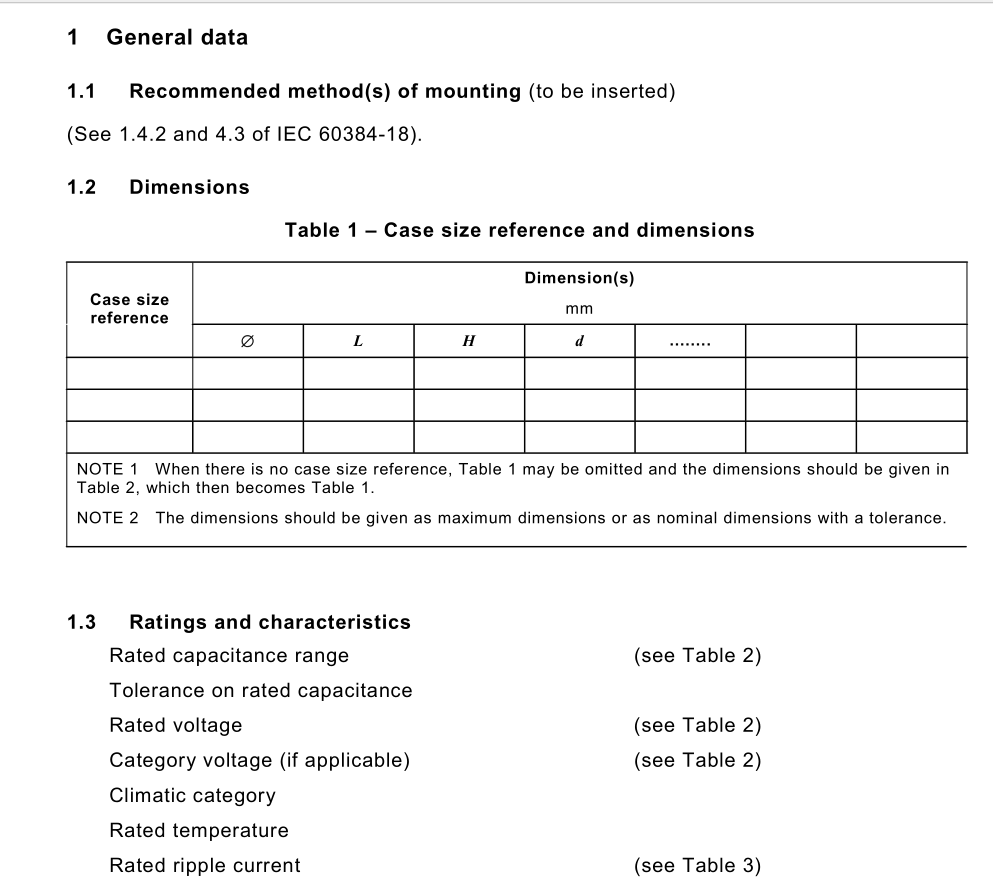

1 General data
1 .1 Recommended method(s) of mounting (to be inserted)
(See 1 .4.2 and 4.3 of IEC 60384-1 8).
1.2 Dimensions
Table 1 – Case size reference and dimensions
1.3 Ratings and characteristics
Rated capacitance range (see Table 2)
Tolerance on rated capacitance
Rated voltage (see Table 2)
Category voltage (if applicable) (see Table 2)
Climatic category
Rated temperature
Rated ripple current (see Table 3)
Tangent of loss angle (see Table 3)
Leakage current
Impedance (if applicable) (see Table 3)
Reverse voltage (if required)
Insulation resistance (if applicable)
1.4Normative references
The following referenced documents are indispensable for the application of this document.For dated references, only the edition cited applies.For undated references, the latest editionof the referenced document (including any amendments) applies.
IEC 60384-1,Fixed capacitors for use in electronic equipment – Part 1: Generic specificationIEC 60384-18:2007,Fixed capacitors for use in electronic equipment – Part 18: Sectionalspecification – Fixed aluminium electrolytic surface mount capacitors with solid (MnO2) andnon-solid electrolyte
IEC 60410:1973,Sampling plans and procedures for inspection by attributes
1.5 Marking
The marking of the capacitor,if applied,and the package shall be in accordance with therequirements of 1.6 of IEc 60384-18.
NOTE The details of the marking of the component and package should be given in full in the detail specification.
1.6ordering information
Orders for capacitors covered by this specification shall contain, in clear or in coded form, thefollowing minimum information:
a) rated capacitance;
b) tolerance on rated capacitance;
c) rated d.c. voltage;
d) number and issue reference of the detail specification and style reference;
e) packaging instructions.
1.7 Certified records of released lotsRequired/not required.
1.8Additional information (not for inspection purposes)
1.9 Additional or increased severities or requirements to those specified
in the generic andlor sectional specification
NOTE Additions or increased requirements should be specified only when essential.
