IEC 60227 pdf download Polyvinyl chloride insulated cables of rated voltages up to andincluding 450/750 v Part 5: Flexible cables (cords)

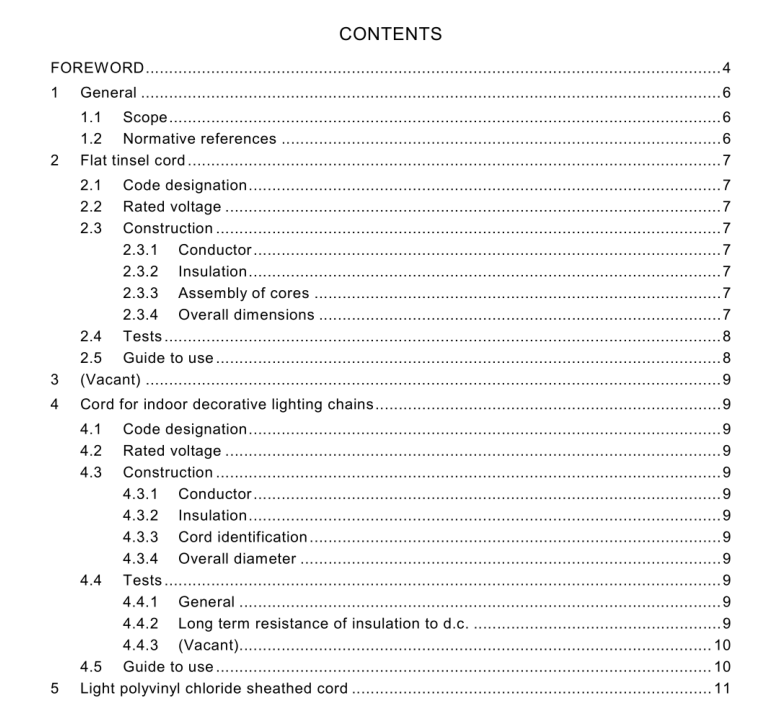

General
1.1Scope
This part of lEC 60227 details the particular specifications for polyvinyl chloride insulatedflexible cables (cords), of rated voltages up to and including 300/500 v.
All cables comply with the appropriate requirements given in lEC 60227-1 and each individualtype of cable complies with the particular requirements of this part.
1.2Normative references
The following referenced documents are indispensable for the application of this document. Fordated references,only the edition cited applies.For undated references, the latest edition ofthe referenced document (including any amendments) applies.
NOTE The lEC 60811 series is currently undergoing a revision,which will lead to a restructuring of its parts. Adescription of this， as well as a cross-reference table between the current and planned parts will be given inlEC 60811-100.
IEC 60227-1:2007，Polyvinyl chloride insulated cables of rated voltages up to and including450/750 v – Part 1: General requirements
IEC 60227-2:1997，Polyvinyl chloride insulated cables of rated voltages up to and including450/750 v- Part 2: Test methods Amendment 1 (2003)
IEC 60228,Conductors of insulated cables
IEC 60332-1-2，Tests on electric and optical fibre cables under fire conditions – Part 1-2:Testfor vertical flame propagation for a single insulated wire or cable – Procedure for 1 kW pre-mixed flame
IEC 60811-1-1:1993,Common test methods for insulating and sheathing materials of electriccables – Part 1: Methods for general application – Section 1: Measurement of thickness andoverall dimensions – Tests for determining the mechanical properties
Amendment 1 (2001)
IEC 60811-1-2:1985,Common test methods for insulating and sheathing materials of electriccables – Part 1: Methods for general application – Section Two: Thermal ageing methodsAmendment 1 (1989)
Amendment 2 (20o0)
lIEC 60811-1-4:1985,Common test methods for insulating and sheathing materials of electriccables – Part 1: Methods for general application – Section Four: Tests at low temperatureAmendment 1 (1993)
Amendment 2 (2001)
IEC 60811-3-1:1985,Common test methods for insulating and sheathing materials of electriccables – Part 3: Methods specific to PVC compounds -Section One: Pressure test at hightemperature – Tests for resistance to cracking
Amendment 1 (1994)
Amendment 2 (2001)
IEC 60811-3-2:1985,Common test methods for insulating and sheathing materials of electriccables – Part 3: Methods specific to PvC compounds – Section Two:Loss of mass test -Thermal stability test
Amendment 1 (1993)Amendment 2 (20o3)
2Flat tinsel cord2.1Code designation60227 IEC 41.
2.2 Rated voltage300/300 v.
2.3Construction2.3.1conductorNumber of conductors: 2.
Each conductor shall comprise a number of strands or groups of strands,twisted together,each strand being composed of one or more flattened wires of copper or copper alloy, helicallywound on a thread of cotton, polyamide or similar material.
The conductor resistance shall not exceed the value given in Table 1, column 5.
2.3.2 lnsulation
The insulation shall be polyvinyl chloride compound of type PVC/D applied around eachconductor.
The insulation thickness shall comply with the specified value given in Table 1, column 1.The insulation resistance shall be not less than the value given in Table 1, column 4.
2.3.3Assembly of cores
The conductors shall be laid parallel and covered with the insulation.
The insulation shall be provided with a groove on both sides,between the conductors，tofacilitate separation of the cores.
