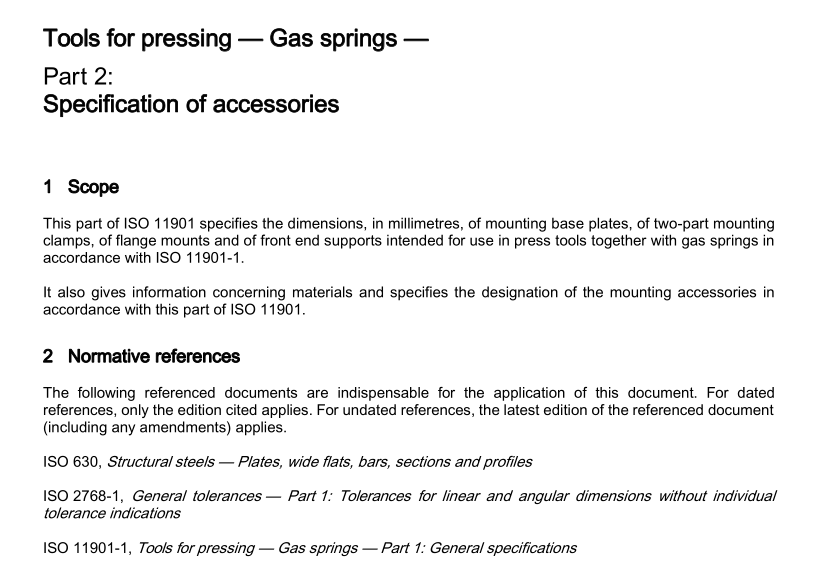

BS ISO 11901-2 pdf download Tools for pressing — Gas springs — Part 2: Specification of accessories
1 Scope
This part of ISO 11901 specifies the dimensions, in millimetres, of mounting base plates, of two-part mounting clamps, of flange mounts and of front end supports intended for use in press tools together with gas springs in accordance with ISO 11901-1.
It also gives information concerning materials and specifies the designation of the mounting accessories in accordance with this part of ISO 11901.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 630, Structural steels — Plates, wide flats, bars, sections and profiles
ISO 2768-1, General tolerances — Part 1: Tolerances for linear and angular dimensions without individual tolerance indications
ISO 11901-1, Tools for pressing — Gas springs — Part 1: General specifications
3 Dimensions
3.1 Type A1 — Mounting base plates with two holes to clamp the gas spring
See Figure 1 and Table 1
