BS IEC 62463 pdf download Radiation protection instrumentation – X-ray systems for the screening of persons for security and the carrying of illicit items

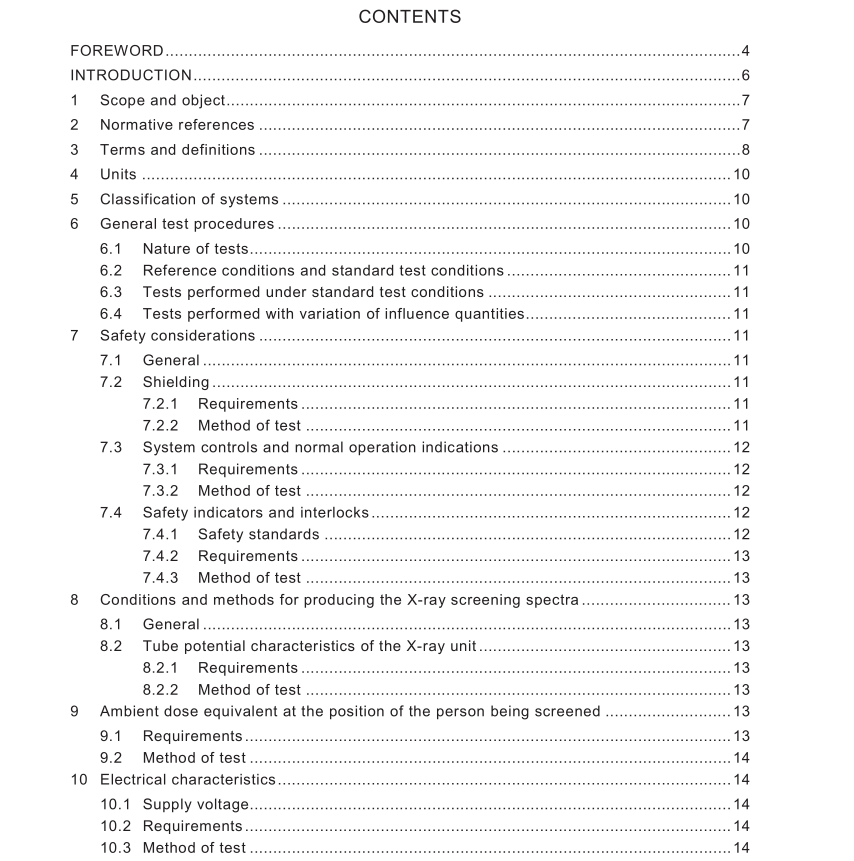

1 Scope and object
This International Standard is applicable to X-ray systems designed for screening people to detect if they are carrying objects that could be used for criminal purposes, e.g., terrorist use, drug smuggling and theft. These objects include weapons, explosives, chemical and biological agents and other concealed items.
Three types of X-ray screening systems are currently in use. These are backscatter systems, transmission systems and combination backscatter/transmission systems. With backscatter systems the X-rays are used to detect objects hidden under or within the person’s clothing. With transmission systems objects swallowed or hidden in body cavities may be detected. Combined devices can be used to get both pieces of information simultaneously.
The object of this standard is to lay down standard requirements and also to specify general characteristics, general test procedures, radiation characteristics, electrical characteristics, environmental influences, mechanical characteristics, safety requirements and to provide examples of acceptable methods in terms of dose to the whole or part of the body for each screening procedure and the time taken for each screening procedure.
In particular the standard addresses the design requirements as they relate to the radiation protection of the people being screened, people who are in the vicinity of the equipment and the operators. The standard does not address the performance requirements for the quality of the object detection.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
IEC 60038:2009, IEC standard voltages
IEC 60050-393:2003, International Electrotechnical Vocabulary (IEV) – Part 393: Nuclear instrumentation – Physical phenomena and basic concepts
IEC 60050-394:2007, International Electrotechnical Vocabulary (IEV) – Part 394: Nuclear instrumentation – Instruments, systems, equipments and detectors
IEC 60068-2-27, Environmental testing – Part 2-27: Tests – Test Ea and guidance: Shock IEC 60068-2-75:1 997, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
IEC 61 000-4-2, Electromagnetic compatibility (EMC) – Part 4-2: Testing and measurement techniques – Electrostatic discharge immunity test
IEC 61 000-4-3, Electromagnetic compatibility (EMC) – Part 4-3: Testing and measurement techniques – Radiated, radio-frequency, electromagnetic field immunity test
ISO 4037-1 :1 996, X and gamma reference radiation for calibrating dosemeters and doserate meters and for determining their response as a function of photon energy – Part 1: Radiation characteristics and production method
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply. The general terminology concerning X-ray screening systems is given in IEC 60050-393:2003 and IEC 60050-394:2007.
3.1 ambient dose equivalent, Hx(d) the ambient dose equivalent at a point in a radiation field, is the dose equivalent that would be produced by the corresponding expanded and aligned field, in the ICRU sphere at a depth, d, on the radius opposing the direction of the aligned field
